Yes. The insulated core is what separates these panels from single skin roofing. Cooler in summer, warmer in winter, and much quieter in heavy rain. The thicker the panel, the better it performs.

Insulated roof panels are designed to significantly reduce the risk of condensation by helping regulate the temperature between internal and external surfaces. However, Condensation can still occur under certain conditions, particularly in high humidity environments or where there is limited airflow and ventilation. Proper installation, ventilation and drainage are important in minimising condensation.

Wash it down with clean water a few times a year, more often near the coast. The finish is pre-painted, so there is nothing to seal or repaint. Do not use abrasive cleaners on the ceiling side.

A 15 year manufacturer’s warranty, backed by in house manufacturing. Selected dark colours carry a limited warranty. Ask us for the warranty document before you order if colour is a deciding factor.

You can, but it is slow and messy work, and the insulated core gets everywhere. We recommend ordering the exact lengths you need instead. Cutbacks are available at both ends, which makes fitting around gutters and beams much easier.

Panels are cut to your length, so enter the exact length you need in metres. Decimals are fine, for example 4.45. The minimum is 1.8m with a maximum of 8m. Set the quantity to the number of sheets. If your job needs sheets at different lengths, place a separate line for each length.

When ordering insulated roofing, make sure you measure the full roof length, including the required overhang and additional length for your guttering. It’s important to allow enough panel length to ensure the roof finishes correctly into the gutter and provides adequate water drainage. If you’re unsure on how much to allow for your guttering, our team can help you work through your measurements and make sure you order the correct panel length for your project.

Yes. The long spans suit carports well because you need fewer posts across the driveway.

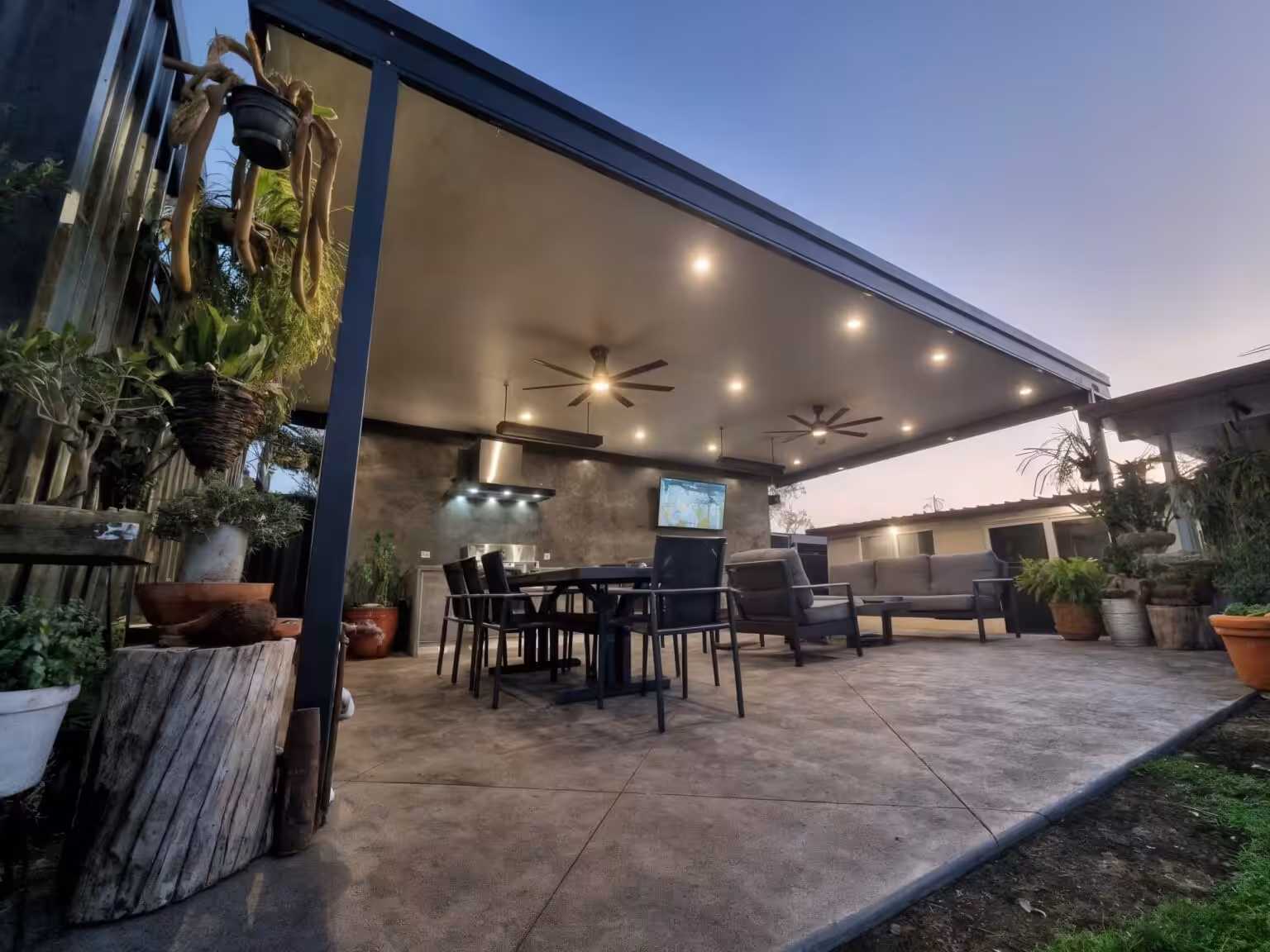

Yes. The panels take both without extra framing. Plan your downlight positions before installation and run the wiring as the sheets go on. Electrical work must be done by a licensed electrician.

No. The underside of the panel is a flat finished ceiling, so there is nothing further to install. That is the main reason people choose insulated panels over separate roof sheeting and batts.

Yes! Our patio, pergola, carport and awning products include all the required parts and hardware you need to assemble them. We’ll provide detailed construction drawings as well.

Please note: whilst all structural components and fixings are included for concrete footings, the concrete mixture is not provided. Please ensure you source the required concrete prior to digging the footings to allow for a smooth installation process.

Both panels have the same insulation value, the same 1000mm cover width and the same span ratings. The difference is the look of the roof and the minimum pitch. Ribbed has a squared profile and works from 2 degrees of fall. Corrugated has the traditional wavy profile and needs at least 5 degrees, which is 87mm of fall per metre. If your structure has a low pitch, ribbed is the one that will work.

Thickness affects two things: how far the panel can span, and how well it insulates. A 50mm panel spans up to 5.3m in a low wind classification, while a 150mm panel reaches 9.6m. Insulation ranges from R1.61 at 50mm to R3.94 at 150mm. Check the span table above against your wind classification and the way your structure is enclosed. If you are unsure of your wind classification, contact us before you order.

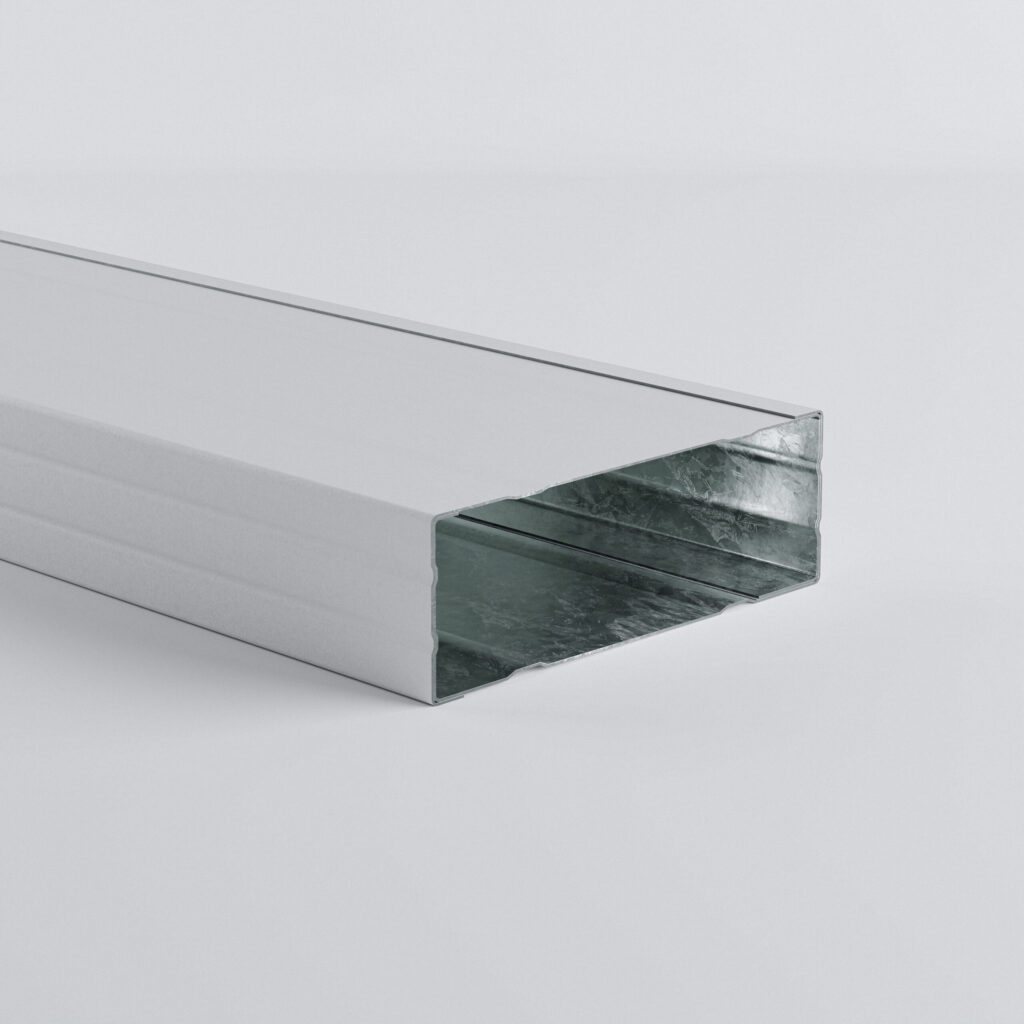

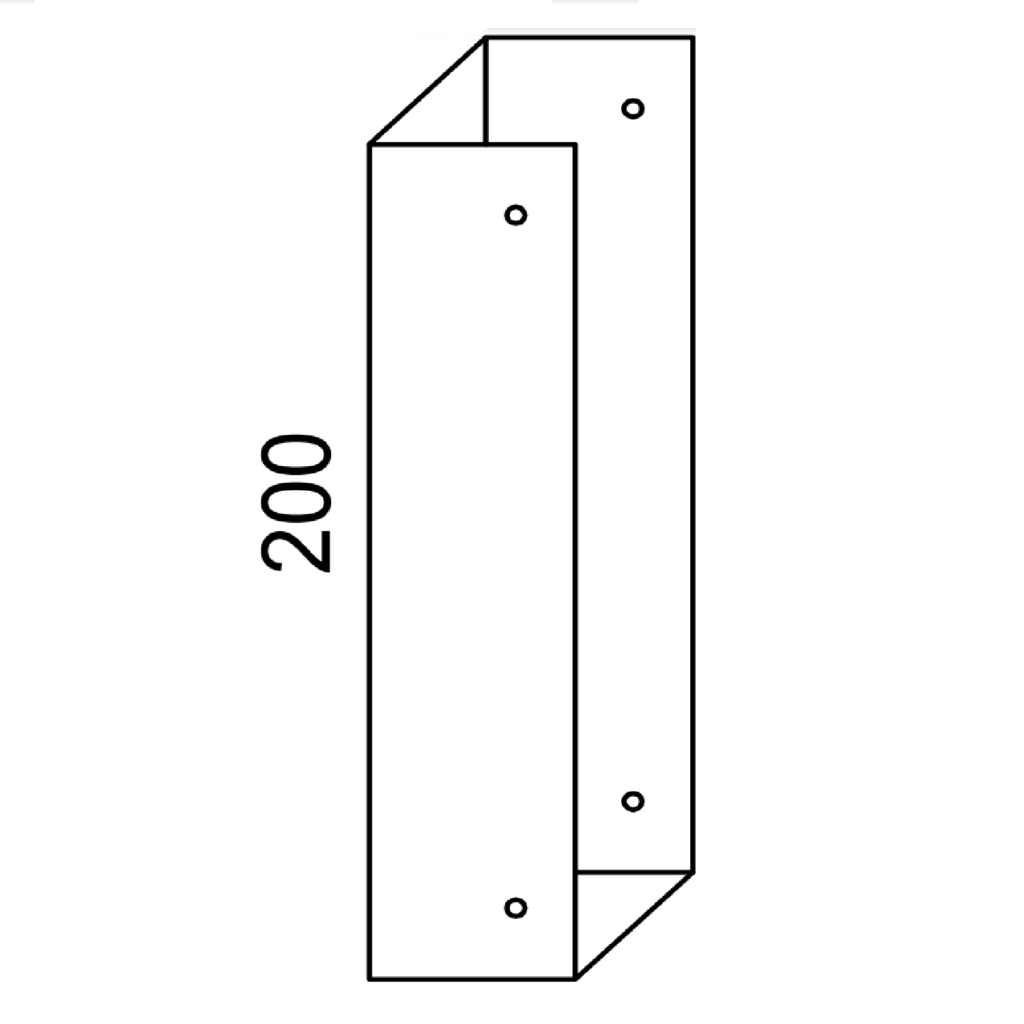

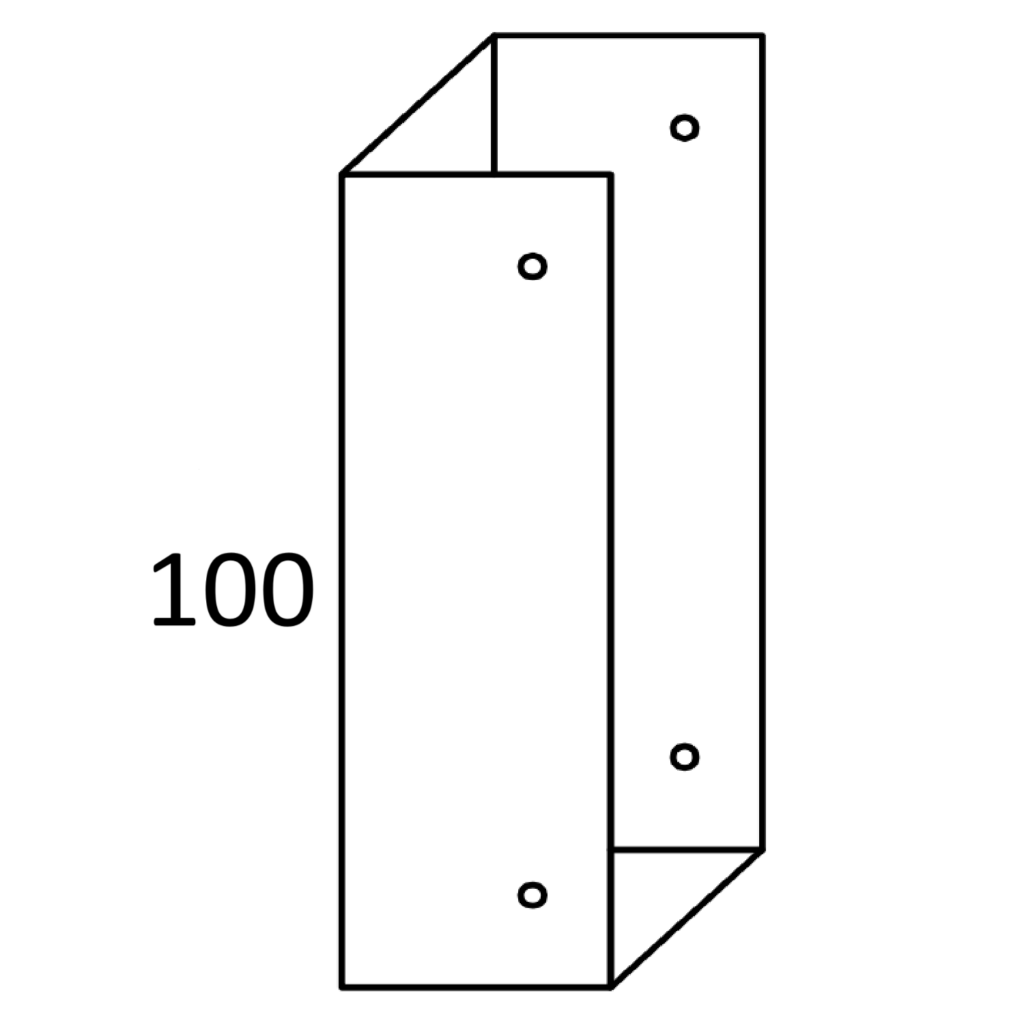

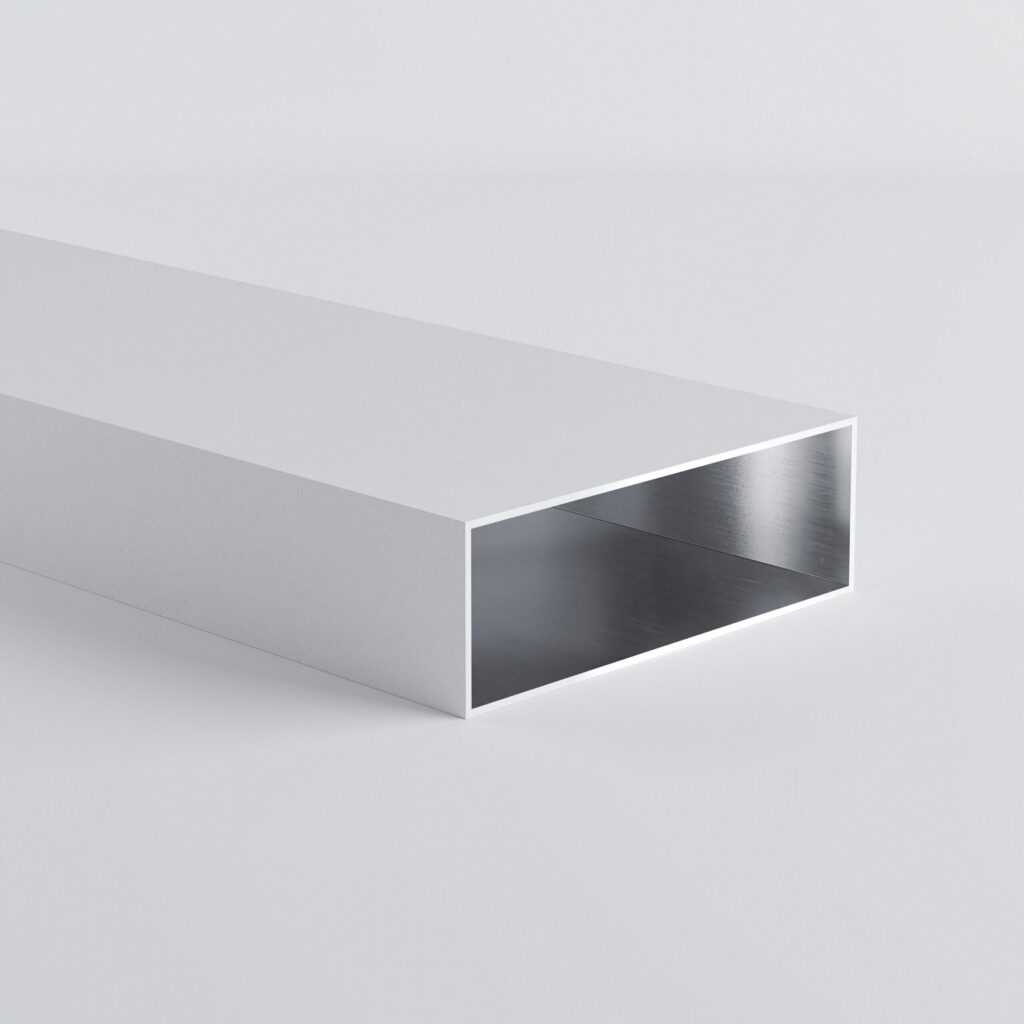

A typical kit contains roof sheets, beams, posts, brackets, connectors, fixings, guttering, downpipes and flashings along with construction drawings that detail specific instructions relevant to your project.

See the NSW Guidelines for a general overview, however, your local council also has their own unique set of rules and policies and as such you must inquire with them.

We offer complete customisation when it comes to sizing. When adding a product to your cart, you can select your desired width, length, and roof style. This allows you to tailor your patio, pergola, carport or awning to your exact specifications.

Yes, all our products are covered by Manufacturer Warranties. Quality guaranteed.
